• Clamp Levers

Tension Lever, Male Screw

LTM

Safety PrecautionsUsage

RoHS Compliant

LTMTension Lever, Male Screw

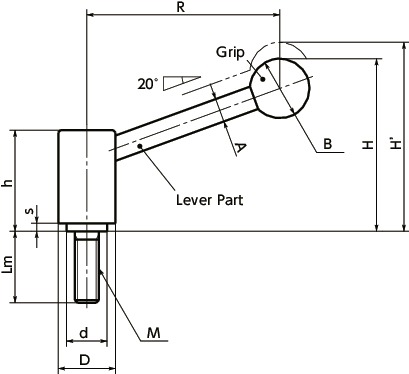

Dimension Drawing

LTMTension Lever, Male Screw寸法図

Specs/CAD

Select

M (Coarse)
Nominal of Thread
All
M10
M12
M16
M20
Lm
All
30
40
50
60
80

Unit : mm

Part Number M (Coarse)
Nominal of Thread		 Pitch Lm R H H' h s A B D d Tooth No. Max. load
(N)		 Max. tightening force
(kN)		 Mass
(g)		 Price
(USD)		 CAD
Download		 Add to Cart
LTM-10-30 M10 1.5 30 81 72.5 78 42.5 2.5 10 25 24 17 24 280 16 195 36.42 CAD Cart
LTM-10-40 M10 1.5 40 81 72.5 78 42.5 2.5 10 25 24 17 24 280 16 203 37.30 CAD Cart
LTM-10-50 M10 1.5 50 81 72.5 78 42.5 2.5 10 25 24 17 24 280 16 210 37.30 CAD Cart
LTM-12-30 M12 1.75 30 99 85.5 92 49.5 3.5 11 25 28 20 26 400 23 300 44.97 CAD Cart
LTM-12-40 M12 1.75 40 99 85.5 92 49.5 3.5 11 25 28 20 26 400 23 307 45.19 CAD Cart
LTM-12-50 M12 1.75 50 99 85.5 92 49.5 3.5 11 25 28 20 26 400 23 313 45.19 CAD Cart
LTM-12-60 M12 1.75 60 99 85.5 92 49.5 3.5 11 25 28 20 26 400 23 320 45.19 CAD Cart
LTM-16-30 M16 2 30 118 98.5 106 55.5 3.5 12 30 33 24 36 830 43 490 52.52 CAD Cart
LTM-16-40 M16 2 40 118 98.5 106 55.5 3.5 12 30 33 24 36 830 43 505 56.41 CAD Cart
LTM-16-50 M16 2 50 118 98.5 106 55.5 3.5 12 30 33 24 36 830 43 520 56.41 CAD Cart
LTM-16-60 M16 2 60 118 98.5 106 55.5 3.5 12 30 33 24 36 830 43 535 56.41 CAD Cart
LTM-20-40 M20 2.5 40 136 114.5 123 65.5 4.5 14 35 41 30 36 1400 67 880 65.23 CAD Cart
LTM-20-60 M20 2.5 60 136 114.5 123 65.5 4.5 14 35 41 30 36 1400 67 928 65.23 CAD Cart
LTM-20-80 M20 2.5 80 136 114.5 123 65.5 4.5 14 35 41 30 36 1400 67 975 67.53 CAD Cart

No products fulfill the conditions above.

We regret to inform you that no products fulfill the conditions you have entered.
Please change the values you have entered and search once again.

Nabeya Bi-tech Kaisha offers customized products in accordance with your needs.
Please feel free to contact us via the inquiry form.

Nabeya Bi-tech Kaisha
Customer Service

Please enter questions about customization and other product-related inquiries here.

Find the inquiry form here
Part Number
Amount
Price（＄）

Check other products Cart

　　　　　　

Material/Finish

LTM
Lever Part S45C
Ferrosoferric Oxide Film (Black)
Thread Part S45C
Ferrosoferric Oxide Film (Black)
Grip Phenol Resin (Black)

Characteristics

  • A strong type clamping lever.
  • Products of special specifications such as rotating radius of the lever can also be manufactured.
    Please feel free to contact our customer service.
