Name: HSN
Brand: Nabeya Bi-tech Kaisha
Availability: OutOfStock

Hints for Correctly Using NBK Products

Dimension Drawing

Specs/CAD

Unit : mm

Part Number	D	H	A	s	h	d	L	T	Dg	G	P	Mass (g)	Number of spokes	Price (USD)	CAD Download	Add to Cart
HSN-125	125	44	15	29	19	35	30	2.5	23	76.5	50	850	2	76.27	CAD	Cart
HSN-160	160	52	16	36	21.5	40	35	2.5	23	74	67	1300	2	78.59	CAD	Cart
HSN-200	200	56	17	39	18.5	48	40	2.5	26	91.5	87	2060	2	95.24	CAD	Cart
HSN-250	250	62	19	43	25.5	52	40	2.5	26	85	112	2960	2	111.27	CAD	Cart
HSN-315	315	66	21	45	24.5	63	45	2.5	26	86	144	4770	2	139.24	CAD	Cart

Part Number
Amount
Price（＄）

Check other products Cart

Material/Finish

	HSN
Retractable Revolving Grip	Phenol Resin (Black)
Handwheel	FC200 Electrostatic Coating (Black)

Characteristics

2 spoke handle with retractable revolving grip.
The grip has a mechanism that must be pulled up before folding down, preventing unexpected collapse.
The body of the handle is made of cast iron and the grip is phenol resin. Heavy duty type capable of withstanding large torque.

Related Services

Product List

HSN

Recommended Items for You

Part Name

Plastic Clamp Levers - Plain Washer Integrated Type

Part Number

LUDM-LW

Feature

Integrated Plain Washers
Universal Design

Part Name

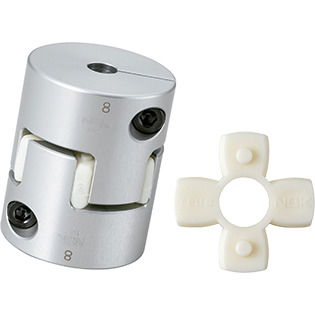

Flexible Coupling -Jaw-Type (Short) - Clamping Type
