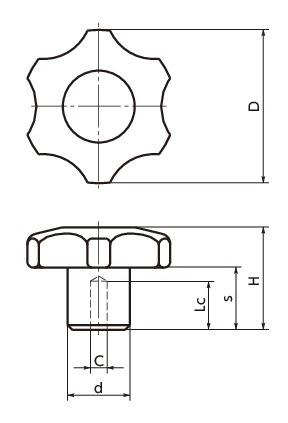

Dimension Drawing
Specs/CAD
Unit : mm
| Part Number | D | Lc | H | s | C | d | Mass (g) |
Price (USD) |
CAD Download |
Add to Cart |
|---|---|---|---|---|---|---|---|---|---|---|
| KK-32 | 32 | 10 | 22 | 13 | 5 | 13 | 60 | 13.50 | CAD | Cart |
| KK-40 | 40 | 10 | 25 | 16 | 5 | 16 | 100 | 14.71 | CAD | Cart |
| KK-50 | 50 | 10 | 32 | 20 | 5 | 20 | 200 | 19.26 | CAD | Cart |
| KK-63 | 63 | 10 | 40 | 25 | 5 | 25 | 350 | 22.88 | CAD | Cart |
| KK-80 | 80 | 10 | 50 | 32 | 5 | 32 | 700 | 30.64 | CAD | Cart |
Nabeya Bi-tech Kaisha
Customer Service
Please enter questions about customization and other product-related inquiries here.
Find the inquiry form hereMaterial/Finish
| KK | |
|---|---|
| Main unit | FC200 Chrome Plating |
Characteristics
- Types can be selected by a product code.
KK---- Pilot Hole
