• Pulls

TF

Copper Pull

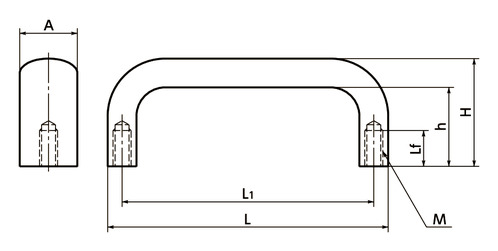

Dimension Drawing

TFCopper Pulls寸法図

Specs/CAD

Select

A
All
16
L1
All
70
100
150

Unit : mm

Part Number M Lf H h A L L1 Mass
(g)
Max. Allowable Load*1
(N)
Screw Supply Service Screw Size Price
(USD)
CAD
Download
Add to Cart
TF-70 M5 10 30 22 16 78 70 88 1000 M5×12 19.72 CAD Cart
TF-100 M5 10 30 22 16 108 100 115 1000 M5×12 21.82 CAD Cart
TF-150 M5 10 30 22 16 158 150 157 1000 M5×12 32.80 CAD Cart

*1: Allowed load for a person.

No products fulfill the conditions above.

We regret to inform you that no products fulfill the conditions you have entered.
Please change the values you have entered and search once again.

Nabeya Bi-tech Kaisha offers customized products in accordance with your needs.
Please feel free to contact us via the inquiry form.

Nabeya Bi-tech Kaisha
Customer Service

Please enter questions about customization and other product-related inquiries here.

Find the inquiry form here

Material/Finish

TF
Main Body Brass
Chrome Plating
Hex Socket Head Cap Screw
(Screw Supply Service)
SUS XM7

Characteristics

  • Hex socket head cap screws for mounting (SUSXM7) are available as an option. Use the screw supply service (charged separately).
