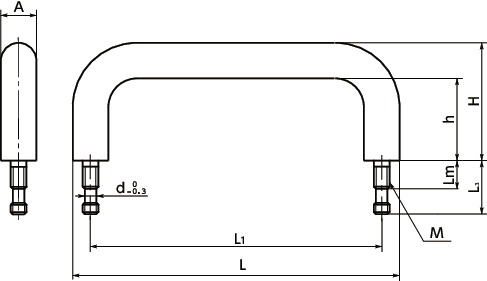

Unit : mm
＊1： Allowed load for a person.
- Pulls with captive mechanism. Male screw type.
Accidental falling of a nut from the pull is prevented even when the mounting nut is loosened.
SUS304 superior in corrosion resistance is used.
For applications such as food machinery, packing machinery and chemical manufacturing devices that require countermeasures against foreign material mixture.
For mounting, use Type 3 of commercially-available hexagon nuts (M5). Hexagon nuts are not supplied.

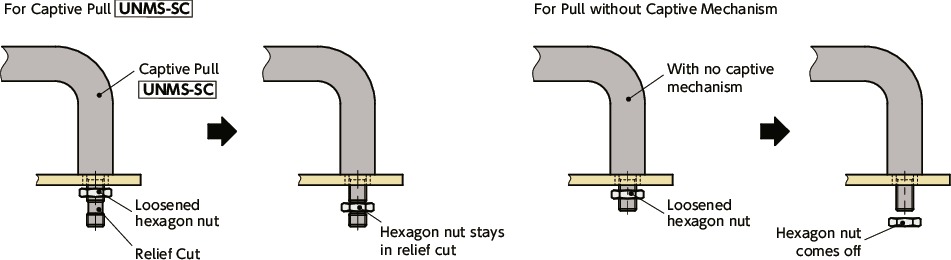

Even the nut is loosened, it temporarily remains in the relief cut part and will not fall off directly.
Male type pulls with no captive mechanism TGY
