Aluminum U - shaped Pull

Name: UNFA
Brand: Nabeya Bi-tech Kaisha
Availability: OutOfStock

Steel Pull / Stainless Steel Pull / Aluminum Pull

UNFA

Safety Precautions

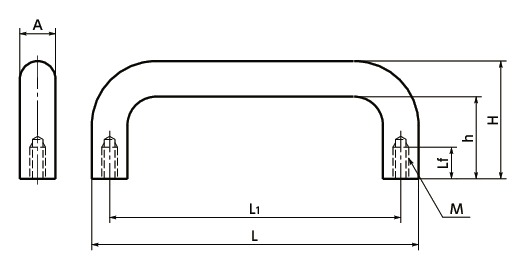

Dimension Drawing

Specs/CAD

Select

Body color: All; BF; BK

Unit : mm

Part Number	M	Lf	H	h	A	L	L₁	Mass (g)	Allowable load^＊1 (N)	Applicable Washer	Body color	Screw supply service Screw size	Price (USD)	CAD Download	Add to Cart
UNFA-80-BF	M5	10	37	27	10	90	80	27	1000	※1	BF	M5×12	5.30	CAD	Cart
UNFA-80-BK	M5	10	37	27	10	90	80	27	1000	※1	BK	M5×12	5.38	CAD	Cart
UNFA-100-BF	M5	10	37	27	10	110	100	31	1000	※1	BF	M5×12	5.38	CAD	Cart
UNFA-100-BK	M5	10	37	27	10	110	100	31	1000	※1	BK	M5×12	5.67	CAD	Cart
UNFA-110-BF	M5	10	37	27	10	120	110	33	1000	※1	BF	M5×12	5.67	CAD	Cart
UNFA-110-BK	M5	10	37	27	10	120	110	33	1000	※1	BK	M5×12	5.67	CAD	Cart
UNFA-120-BF	M5	10	37	27	10	130	120	35	1000	※1	BF	M5×12	5.67	CAD	Cart
UNFA-120-BK	M5	10	37	27	10	130	120	35	1000	※1	BK	M5×12	5.67	CAD	Cart
UNFA-125-BF	M5	10	37	27	10	135	125	36	1000	※1	BF	M5×12	5.67	CAD	Cart
UNFA-125-BK	M5	10	37	27	10	135	125	36	1000	※1	BK	M5×12	5.89	CAD	Cart
UNFA-160-BF	M5	10	37	27	10	170	160	44	1000	※1	BF	M5×12	7.46	CAD	Cart
UNFA-160-BK	M5	10	37	27	10	170	160	44	1000	※1	BK	M5×12	7.59	CAD	Cart

＊1：　Allowed load for a person.

No products fulfill the conditions above.

We regret to inform you that no products fulfill the conditions you have entered.
Please change the values you have entered and search once again.

Nabeya Bi-tech Kaisha offers customized products in accordance with your needs.
Please feel free to contact us via the inquiry form.

Nabeya Bi-tech Kaisha
Customer Service

Please enter questions about customization and other product-related inquiries here.

Find the inquiry form here

Part Number
Amount
Price（＄）

Check other products Cart

Material/Finish

	UNFA-BF	UNFA-BK
Main body	Aluminum Alloy Buffing	Aluminum Alloy Electrostatic Coating (Matte Black)
Hex Socket Head Cap Screws (Screw supply service)	SUSXM7	SUSXM7

ご希望の取りつけ寸法：L₁を 1mm 単位で指定できます。（取りつけ寸法を入力後「品番更新」をクリックしてください。）

また、オプション（別料金）で取りつけ用のねじを付属します。

取りつけ寸法L₁（mm）*	取りつけ用ねじ	ご注文品番	価格(円)	購入数	ご購入
				個	カート

＊取りつけ寸法 L₁ の許容差は、±0.5mmまたは、L₁ の0.5%のいずれか大きい方となります。

1mm指定の納期

数量（個）	1mm指定の納期
1～9	実働１日目出荷
10～99	実働3日目出荷

取りつけ用ねじの仕様・価格

ねじのサイズ	ねじ本数（本）	ねじの材質	ねじ付属サービス価格（円）

オプション（別料金）で取りつけ用のねじを付属します。

取りつけ用ねじの有無を選択いただき、「カート」をクリックしてください。

取りつけ用ねじ	ご注文品番	価格(円)	購入数	ご購入
			個	カート

取りつけ用ねじの仕様・価格

ねじのサイズ	ねじ本数（本）	ねじの材質	ねじ付属サービス価格（円）

Characteristics

Materials and surface treatment can be selected according to the product code.

Product Code	Material and Surface Treatment
UNFA-BF	Buffing
UNFA-BK	Electrostatic Coating

Hex socket head cap screws for mounting (SUSXM7) are available as an option. Use the screw supply service (charged separately).
