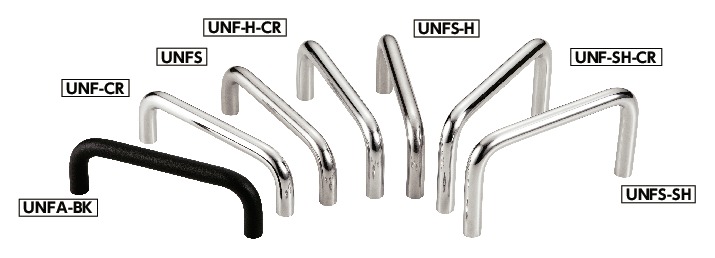

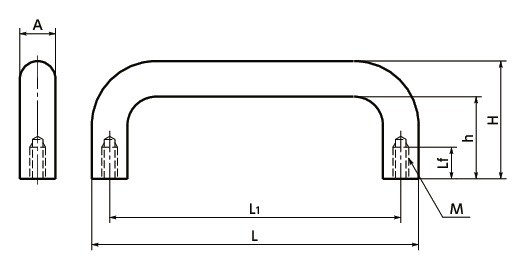

Dimension Drawing
Specs/CAD
Unit : mm
| Part Number | M | Lf | H | h | A | L | L1 | Mass (g) |
Allowable load＊1 (N) |
Applicable Washer | Body color | Screw supply service Screw size | Price (USD) |
CAD Download |
Add to Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| UNFS-80 | M5 | 10 | 37 | 27 | 10 | 90 | 80 | 76 | 1000 | ※1 | BL | M5×12 | 6.03 | CAD | Cart |
| UNFS-100 | M5 | 10 | 37 | 27 | 10 | 110 | 100 | 88 | 1000 | ※1 | BL | M5×12 | 6.42 | CAD | Cart |
| UNFS-110 | M5 | 10 | 37 | 27 | 10 | 120 | 110 | 95 | 1000 | ※1 | BL | M5×12 | 6.90 | CAD | Cart |
| UNFS-120 | M5 | 10 | 37 | 27 | 10 | 130 | 120 | 101 | 1000 | ※1 | BL | M5×12 | 6.90 | CAD | Cart |
| UNFS-125 | M5 | 10 | 37 | 27 | 10 | 135 | 125 | 103 | 1000 | ※1 | BL | M5×12 | 6.90 | CAD | Cart |
| UNFS-160 | M5 | 10 | 37 | 27 | 10 | 170 | 160 | 125 | 1000 | ※1 | BL | M5×12 | 8.03 | CAD | Cart |
| UNFS-200 | M5 | 10 | 37 | 27 | 10 | 210 | 200 | 150 | 1000 | ※1 | BL | M5×12 | 8.94 | CAD | Cart |
| UNFS-250 | M5 | 10 | 37 | 27 | 10 | 260 | 250 | 180 | 1000 | ※1 | BL | M5×12 | 10.38 | CAD | Cart |
＊1： Allowed load for a person.
Nabeya Bi-tech Kaisha
Customer Service
Please enter questions about customization and other product-related inquiries here.
Find the inquiry form hereMaterial/Finish
| UNFS | |
|---|---|
| Main body | SUS304 Barrel Polishing |
| Hex Socket Head Cap Screws (Screw supply service) |
SUSXM7 |
Characteristics
- Hex socket head cap screws for mounting (SUSXM7) are available as an option. Use the screw supply service (charged separately).
