FPP-K

Point Plates

Dimension Drawing

FPP-KPoint Plates寸法図

Thickness: approximately 0.55 mm

Specs/CAD

Part Number Mass(g) Price
(USD)
CAD
Download
Add to Cart
FPP-K 0.7 2.68 CAD Cart

Material/Finish

FPP-K
Main body SUS304

Characteristics

  • Use in combination with the Scale Plate FSP (FSP) or the Scale Sticker FSS (FSS )FST (FST).
  • Convenient as a home position indicator plate for actuators, etc.
  • With mounting holes. Use simply by sticking to existing machinery and equipment.

Usage Example

In combination with the Scale Plate FSP (FSP).

FPP-KPoint Plates


Related Products

FPP models that are the same shape as FPP-K but without mounting holes are available.

FPP-KPoint Plates

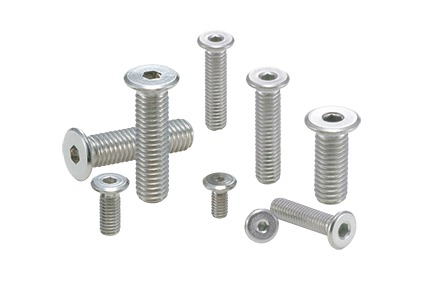

Special low head bolt SSHS whose height of the head is low is available as a mounting bolt.
SSHSSSHL

FPP-KPoint Plates
