Scale Plates (Vertical Type)

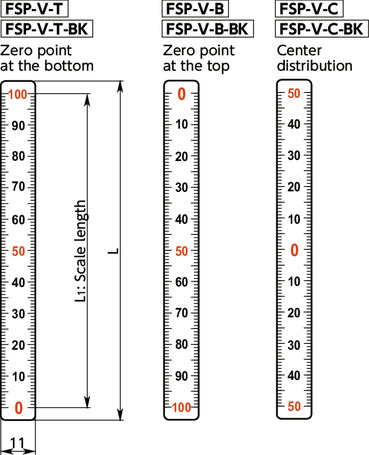

Dimension Drawing

FSP-VScale Plates (Vertical Type)寸法図


Unit : mm

Part Number L L1 Reading Direction Mass (g) Price
Add to Cart
FSP-50V-T 58 50 Zero point at the bottom 2.6 2.84 CAD Cart
FSP-100V-T 108 100 Zero point at the bottom 4.8 4.42 CAD Cart
FSP-150V-T 158 150 Zero point at the bottom 7 6.01 CAD Cart
FSP-200V-T 208 200 Zero point at the bottom 9.2 7.25 CAD Cart
FSP-50V-B 58 50 Zero point at the top 2.6 2.84 CAD Cart
FSP-100V-B 108 100 Zero point at the top 4.8 4.42 CAD Cart
FSP-150V-B 158 150 Zero point at the top 7 6.01 CAD Cart
FSP-200V-B 208 200 Zero point at the top 9.2 7.25 CAD Cart
FSP-50V-C 58 50 Center distribution 2.6 2.84 CAD Cart
FSP-100V-C 108 100 Center distribution 4.8 4.42 CAD Cart
FSP-150V-C 158 150 Center distribution 7 6.01 CAD Cart
FSP-200V-C 208 200 Center distribution 9.2 7.25 CAD Cart

No products fulfill the conditions above.

We regret to inform you that no products fulfill the conditions you have entered.
Please change the values you have entered and search once again.

Nabeya Bi-tech Kaisha offers customized products in accordance with your needs.
Please feel free to contact us via the inquiry form.

Nabeya Bi-tech Kaisha
Customer Service

Please enter questions about customization and other product-related inquiries here.

Find the inquiry form here


Main body SUS304

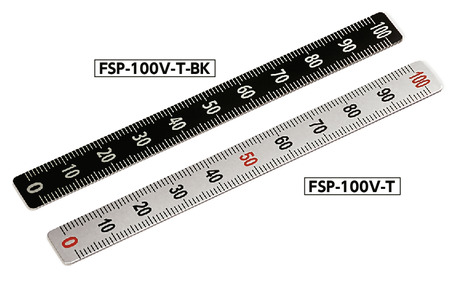

  • Vertical type scale plate. As the adhesive tape is provided, you can simply stick it on machines / devices to use.
  • It is useful to align the adjustment shaft for a conveyance line and a slide table.
  • Scale lengths of 50 / 100 / 150 / 200 mm are standardized.
  • Made of stainless steel. It is highly corrosion-resistant.
  • Corners are rounded. It is hard to remove.
  • FSP-V-K has mounting holes. After sticking, it can be secured more firmly with screws.
  • Adhesive tape is not provided with FSP-50V-*-K. Tighten the Scale Plate with screws.
  • FSP-V----Without mounting holes
    FSP-V-K----With mounting holes
  • Select the scale type from three types, and with or without mounting holes by the end symbol of the part number.
End Symbol Scale Mounting hole
T Zero point at the bottom No
T-K Zero point at the bottom Yes
B Zero point at the top No
B-K Zero point at the top Yes
C Center distribution No
C-K Center distribution Yes
