Hints for Correctly Using NBK Products
The video is an example using SCS-F(SCS-F). You can perform the same operation using this product.

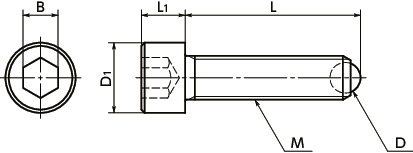

Dimension Drawing
Specs/CAD
Unit : mm
| Part Number | M (Coarse) Nominal of Thread |
Pitch | L | D1 | D | L1 | L2 | B | Mass (g) |
Price (USD) |
CAD Download |
Add to Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SCBS-M4-10-CE | M4 | 0.7 | 10.5 | 7 | 2.5 | 4 | 2.1 | 3 | 1.5 | 14.70 | CAD | Cart |
| SCBS-M4-16-CE | M4 | 0.7 | 16.5 | 7 | 2.5 | 4 | 2.1 | 3 | 1.9 | 14.70 | CAD | Cart |
| SCBS-M4-25-CE | M4 | 0.7 | 25.5 | 7 | 2.5 | 4 | 2.1 | 3 | 2.5 | 14.70 | CAD | Cart |
| SCBS-M5-12-CE | M5 | 0.8 | 12.6 | 8.5 | 3 | 5 | 2.4 | 4 | 2.9 | 13.98 | CAD | Cart |
| SCBS-M5-20-CE | M5 | 0.8 | 20.6 | 8.5 | 3 | 5 | 2.4 | 4 | 3.9 | 13.98 | CAD | Cart |
| SCBS-M5-30-CE | M5 | 0.8 | 30.6 | 8.5 | 3 | 5 | 2.4 | 4 | 5 | 13.98 | CAD | Cart |
| SCBS-M6-16-CE | M6 | 1 | 16.8 | 10 | 4 | 6 | 3 | 5 | 5.6 | 14.70 | CAD | Cart |
| SCBS-M6-25-CE | M6 | 1 | 25.8 | 10 | 4 | 6 | 3 | 5 | 7.6 | 14.70 | CAD | Cart |
| SCBS-M6-40-CE | M6 | 1 | 40.8 | 10 | 4 | 6 | 3 | 5 | 11 | 14.70 | CAD | Cart |
| SCBS-M8-20-CE | M8 | 1.25 | 21.2 | 13 | 5.5 | 8 | 3.5 | 6 | 13.5 | 19.44 | CAD | Cart |
| SCBS-M8-35-CE | M8 | 1.25 | 36.2 | 13 | 5.5 | 8 | 3.5 | 6 | 19 | 19.44 | CAD | Cart |
| SCBS-M8-50-CE | M8 | 1.25 | 51.2 | 13 | 5.5 | 8 | 3.5 | 6 | 25 | 19.44 | CAD | Cart |
| SCBS-M10-25-CE | M10 | 1.5 | 26.7 | 16 | 7 | 10 | 4.5 | 8 | 26 | 23.82 | CAD | Cart |
| SCBS-M10-40-CE | M10 | 1.5 | 41.7 | 16 | 7 | 10 | 4.5 | 8 | 34 | 23.82 | CAD | Cart |
| SCBS-M10-60-CE | M10 | 1.5 | 61.7 | 16 | 7 | 10 | 4.5 | 8 | 47 | 25.78 | CAD | Cart |
| SCBS-M12-30-CE | M12 | 1.75 | 32 | 18 | 8.5 | 12 | 5 | 10 | 40 | 24.63 | CAD | Cart |
| SCBS-M12-50-CE | M12 | 1.75 | 52 | 18 | 8.5 | 12 | 5 | 10 | 56 | 26.23 | CAD | Cart |
| SCBS-M12-80-CE | M12 | 1.75 | 82 | 18 | 8.5 | 12 | 5 | 10 | 83 | 34.99 | CAD | Cart |
Nabeya Bi-tech Kaisha
Customer Service
Please enter questions about customization and other product-related inquiries here.
Find the inquiry form hereMaterial/Finish
| SCBS-CE | |
|---|---|
| Thread Part | SUSXM7 |
| Ball | Alumina (purity 99 % or above, hardness 1100 HV) |
Characteristics

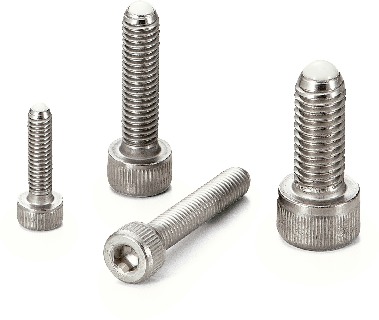

- Clamping bolt with an integral ceramic ball.
- Point contact by full ball securely fixes a work.
- For tool holder set screw, pressure piece and stopper.
- We also produce products of special specifications, e.g. nominal diameter of thread, length and surface treatment. Please feel free to contact our customer service.
