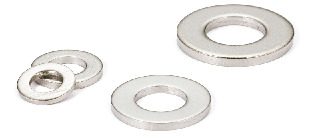

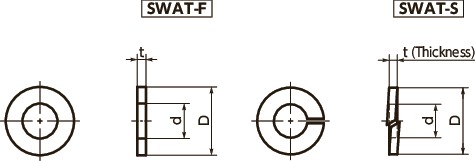

Dimension Drawing
Specs/CAD
Unit : mm
| Part Number | Nominal | d | D | t | Mass (g) |
Price (USD) |
CAD Download |
QTY (Piece) |
|---|---|---|---|---|---|---|---|---|
| SWAT-3-F | 3 | 3.2 | 7 | 0.5 | 0.068 | 1.25 | CAD | Cart |
| SWAT-4-F | 4 | 4.3 | 9 | 0.8 | 0.18 | 1.25 | CAD | Cart |
| SWAT-5-F | 5 | 5.3 | 10 | 1 | 0.25 | 1.39 | CAD | Cart |
| SWAT-6-F | 6 | 6.4 | 12.5 | 1.6 | 0.65 | 1.69 | CAD | Cart |
| SWAT-8-F | 8 | 8.4 | 17 | 1.6 | 1.2 | 2.29 | CAD | Cart |
| SWAT-10-F | 10 | 10.5 | 21 | 2 | 2.3 | 4.54 | CAD | Cart |
● Batch cleanroom packing is provided for orders containing multiple items of the same size.
Material/Finish
| SWAT | |
|---|---|
| Main Body | TP340C（Grade 2 Titanium） |
Application
Lightweight applications in automobiles, aircrafts, spacecrafts, and robotsFPD production equipment, semiconductor devices, electrical and electronic equipment, aquatic applications, and electrochemical plating
Characteristics
- Specific gravity is approximately 60% of stainless steel.
- Nonmagnetic.
- Excellent chemical and seawater resistance.
- Chemical polishing and brightening processing improve the screw surface. Furthermore, the screws are cleanroom washed, cleanroom packed, and comply with clean specifications that require no oil or foreign matter deposits.
Physical Property
| TP340C（Grade 2 Titanium） | |
|---|---|
| Specific Gravity | 4.51 |
| Melting Point（℃） | 1668 |
| Longitudinal Elastic Modulus（GPa） | 106 |
| Thermal Conductivity（W/（m・K）） | 17.16 |
| Linear Expansion Coefficient（K-1） | 8.4×10-6 |
| Electric Resistance（μΩ・m） | 0.55 |
| Amplitude Permeability（μ） | 1.0001（Nonmagnetic） |
Values in chart are for reference only. They are not guaranteed values.
