• Wireless Positioning Units

EOAP-200

Adapter Plates for Wireless Positioning Units

Characteristics

  • Dedicated adapter plates for Wireless Positioning Units EPU-200(EPU-200).

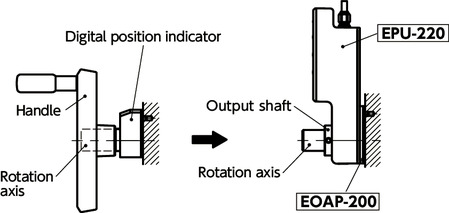

  • When replacing the digital position indicator and the handle attached to a machine with a Wireless Positioning Unit, use the positioning pin of the machine for the digital position indicator as-is to mount the Wireless Positioning Unit.

EOAP-200Adapter Plates for Wireless Positioning Units

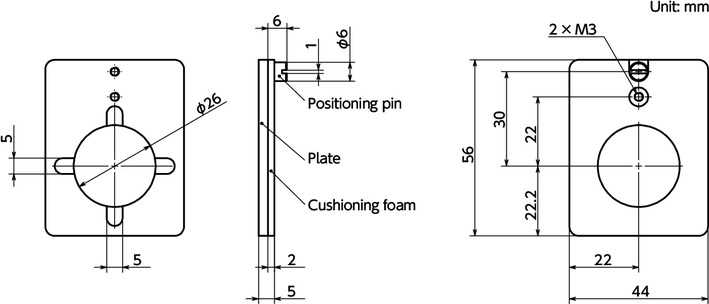

Dimension Drawing

EOAP-200Adapter Plates for Wireless Positioning Units寸法図

Specs/CAD

Part Number Mass
(g)
Price
(USD)
CAD Add to Cart
EOAP-200 16 29.46 CAD Cart

Material/Finish

EOAP-200
Plate Aluminum Alloy
Barrel Polishing
Positioning Pin Aluminum Alloy
Cushioning Foam Polyethylene

Only takes two minutes to understand!Wireless Positioning Units (EPU-200 EPC-200) Installation/Connection Method


Mounting

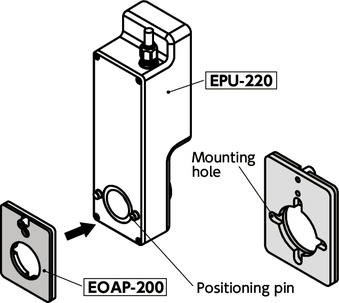

① Mount by aligning the EPU-200 positioning pins and the EOAP-200 mounting holes.

EOAP-200Adapter Plates for Wireless Positioning Units

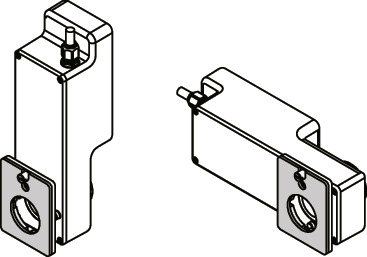

Can be mounted in each 90° orientation.
Mount in a position such that EPU-200 does not interfere with machinery.

EOAP-200Adapter Plates for Wireless Positioning Units

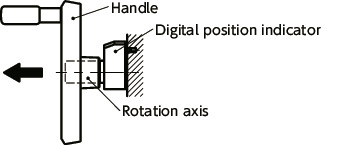

② Remove the digital position indicator and handle from the rotation axis.

EOAP-200Adapter Plates for Wireless Positioning Units

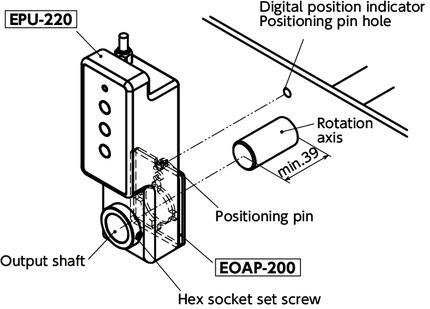

③ With EOAP-200 mounted to EPU-200, put the rotation axis through the output shaft and secure with the hex socket set screws supplied with EPU-200. (Recommended tightening torque: 2.8 N・m)

EOAP-200Adapter Plates for Wireless Positioning Units


Precautions for Use

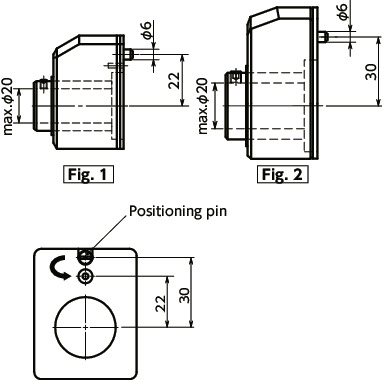

EOAP-200 is used when replacing digital position indicators with sizes as per Fig. 1 or Fig. 2. When shipped, the position of the EOAP-200 positioning pin is matched for sizes of Fig. 2. When replacing digital position indicators with sizes as per Fig. 1, rotate the positioning pin anti-clockwise with a flathead screwdriver and remove it, then change its position. (Recommended tightening torque: 0.3 N・m)

EOAP-200Adapter Plates for Wireless Positioning Units
