• Special Screws
  • Plugs

Hex Socket Pipe Plugs

SFTS-PS

Safety Precautions

RoHS Compliant

SFTS-PSHex Socket Pipe Plugs

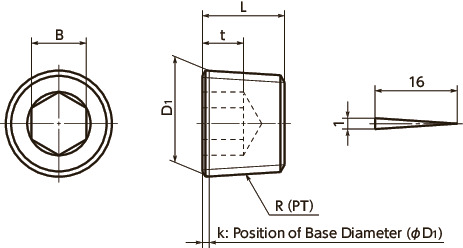

Dimension Drawing

SFTS-PSHex Socket Pipe Plugs寸法図

Specs/CAD

Unit : mm

Part Number R(PT) Normal of Thread D1 k L B t Mass
(g)		 Price
(USD)		 CAD
Download		 QTY
(Pack)
SFTS-0.5-PS R1/16 7.723 0.45 6 4 3 2 8.81 CAD Cart
SFTS-1-PS R1/8 9.728 0.45 7 5 3.5 3 4.06 CAD Cart
SFTS-2-PS R1/4 13.157 0.7 8.9 6 4.5 6 6.52 CAD Cart
SFTS-3-PS R3/8 16.662 0.7 10 8 5 11 8.48 CAD Cart
SFTS-4-PS R1/2 20.955 0.9 12 10 6 21 11.78 CAD Cart

Part Number
Amount
Price（＄）

Check other products Cart

　　　　　　

Material/Finish

SFTS-PS
Main Body SUSXM7
（S.S. grade：A2）

Application

Hydraulic equipment, pneumatic machinery and equipment, and general industrial machines

Characteristics

  • Sinking type Pipe Taper Screw Plugs
  • SFT-PS and SFTS-PS are precoated seal types which do not require sealing tape or sealant. This dramatically reduces work time. The sealing effect is also excellent.
  • Precoated seals have excellent resistance to oil, gasoline, water, and heat.
