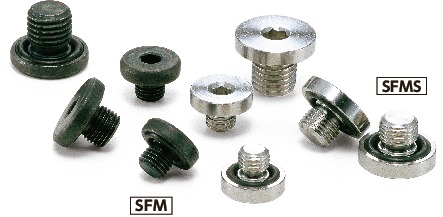

Hex Socket Flange Head Screw Plugs with O-rings

Hex socket flange head screw plugs with O-ring

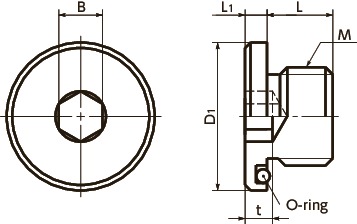

Dimension Drawing

SFMHex Socket Flange Head Screw Plugs寸法図

Specs/CAD

Select

M (Fine)
Nominal of Thread
All
M8
M10
M12
M14
M16
M18
M20
M22
M24
M27

Unit : mm

Part Number M (Fine)
Nominal of Thread
Pitch L D1 L1 B t O-ring No. Recommended Torque
(N・m)
Qty per Pack Mass
(g)
Price
(USD)
CAD Standard
SFM-M8 M8 1 7 16 4 5 3.5 P10 15.7 1 4 5.21 CAD Cart
SFM-M10 M10 1 8 19.5 4 5 4 P12.5 19.6 1 7 5.53 CAD Cart
SFM-M12 M12 1.5 12 21 4 6 5 P14 27.5 1 14 5.84 CAD Cart
SFM-M14 M14 1.5 12 23 4 6 5 P16 39.2 1 19 6.47 CAD Cart
SFM-M16 M16 1.5 12 25 4 8 6 P18 63.7 1 25 6.93 CAD Cart
SFM-M18 M18 1.5 12 27 4 8 6 P20 78.5 1 32 7.25 CAD Cart
SFM-M20 M20 1.5 14 32.5 5 10 6.5 P22.4 113 1 47 10.23 CAD Cart
SFM-M22 M22 1.5 14 35 5 10 6.5 P25 137 1 57 10.86 CAD Cart
SFM-M24 M24 1.5 14 38 5 12 7.5 P28 201 1 68 11.97 CAD Cart
SFM-M27 M27 2 16 40 5 12 7.5 P30 245 1 94 33.99 CAD Cart

No products fulfill the conditions above.

We regret to inform you that no products fulfill the conditions you have entered.
Please change the values you have entered and search once again.

Nabeya Bi-tech Kaisha offers customized products in accordance with your needs.
Please feel free to contact us via the inquiry form.

Nabeya Bi-tech Kaisha
Customer Service

Please enter questions about customization and other product-related inquiries here.

Find the inquiry form here

Material/Finish

SFM
Main body SCM435(Hardness 32-42 HRC)
Ferrosoferric Oxide Coating
(Black)
O-ring Nitrile Rubber
(Type 1 B of JIS B 2401)

Application

Hydraulic equipment, pneumatic machinery and equipment, and general industrial machines

Characteristics

  • Because an O-ring is included, grooving is not required on the surface surrounding the female screw.
  • Because this is a parallel thread, strain on the female screw like a tightened taper thread does not occur. It is suitable for oil hydraulic equipment / pneumatic devices that are often mounted and removed.
