Dimension Drawing

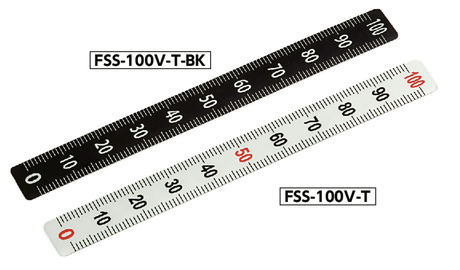

FSS-V (Background color: Silver) Multiples of 0 and 50 are red.
FSS-V-BK (Background color: Black) All numbers are silver.
Specs/CAD
Select
- Reading direction
- All
- Zero point at the bottom
- Zero point at the top
- Center distribution
Unit : mm
| Part Number | L | L1 | Reading direction | Mass (g) | Background Color | Price (USD) |
CAD Download |
Add to Cart |
|---|---|---|---|---|---|---|---|---|
| FSS-100V-T | 108 | 100 | Zero point at the bottom | 0.5 | SG | 3.74 | CAD | Cart |
| FSS-200V-T | 208 | 200 | Zero point at the bottom | 1 | SG | 4.40 | CAD | Cart |
| FSS-300V-T | 308 | 300 | Zero point at the bottom | 1.5 | SG | 4.91 | CAD | Cart |
| FSS-500V-T | 508 | 500 | Zero point at the bottom | 2.5 | SG | 7.79 | CAD | Cart |
| FSS-100V-B | 108 | 100 | Zero point at the top | 0.5 | SG | 3.74 | CAD | Cart |
| FSS-200V-B | 208 | 200 | Zero point at the top | 1 | SG | 4.40 | CAD | Cart |
| FSS-300V-B | 308 | 300 | Zero point at the top | 1.5 | SG | 4.91 | CAD | Cart |
| FSS-500V-B | 508 | 500 | Zero point at the top | 2.5 | SG | 7.79 | CAD | Cart |
| FSS-100V-C | 108 | 100 | Center distribution | 0.5 | SG | 3.74 | CAD | Cart |
| FSS-200V-C | 208 | 200 | Center distribution | 1 | SG | 4.40 | CAD | Cart |
| FSS-300V-C | 308 | 300 | Center distribution | 1.5 | SG | 4.91 | CAD | Cart |
| FSS-500V-C | 508 | 500 | Center distribution | 2.5 | SG | 7.79 | CAD | Cart |
| FSS-100V-T-BK | 108 | 100 | Zero point at the bottom | 0.5 | BK | 3.98 | CAD | Cart |
| FSS-200V-T-BK | 208 | 200 | Zero point at the bottom | 1 | BK | 4.98 | CAD | Cart |
| FSS-300V-T-BK | 308 | 300 | Zero point at the bottom | 1.5 | BK | 5.87 | CAD | Cart |
| FSS-500V-T-BK | 508 | 500 | Zero point at the bottom | 2.5 | BK | 8.94 | CAD | Cart |
| FSS-100V-B-BK | 108 | 100 | Zero point at the top | 0.5 | BK | 3.98 | CAD | Cart |
| FSS-200V-B-BK | 208 | 200 | Zero point at the top | 1 | BK | 4.98 | CAD | Cart |
| FSS-300V-B-BK | 308 | 300 | Zero point at the top | 1.5 | BK | 5.87 | CAD | Cart |
| FSS-500V-B-BK | 508 | 500 | Zero point at the top | 2.5 | BK | 8.94 | CAD | Cart |
| FSS-100V-C-BK | 108 | 100 | Center distribution | 0.5 | BK | 3.98 | CAD | Cart |
| FSS-200V-C-BK | 208 | 200 | Center distribution | 1 | BK | 4.98 | CAD | Cart |
| FSS-300V-C-BK | 308 | 300 | Center distribution | 1.5 | BK | 5.87 | CAD | Cart |
| FSS-500V-C-BK | 508 | 500 | Center distribution | 2.5 | BK | 8.94 | CAD | Cart |
Nabeya Bi-tech Kaisha
Customer Service
Please enter questions about customization and other product-related inquiries here.
Find the inquiry form hereMaterial/Finish
| FSS-V | |
|---|---|
| Main Body | Polyester Aluminum Evaporation Coating |
Characteristics
- Sticker type vertical scale. Use by sticking to machinery and equipment.
- Standardized 100/200/300/500 mm scale length.
- Made of flexible polyester. Can be stuck to the curved surfaces of posts or shafts, plus can be cut to a desired length for use.
- Corners are rounded. Doesn’t come off easily.
- There are 3 types of scales. They can be selected by the symbol of the part number.
| Symbol | Scale |
|---|---|
| T | Zero Point at the Bottom |
| B | Zero Point at the Top |
| C | Center Distribution |
- There are two color variations available. They can be selected by the end symbol of the part number.
| End Symbol | Background Color | Scale/Numbers |
|---|---|---|
| No | Silver | Red/Black |
| BK | Black | Silver |
Precautions for Use
- Use the scale of the FSS-V Scale Sticker as a general guideline.
- Thoroughly remove oil and dust on the sticking surface before sticking.
