SCB-R

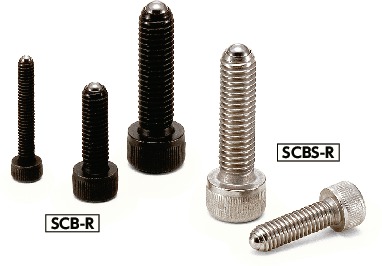

Clamping Bolt - Full Ball

Hints for Correctly Using NBK Products

The video is an example using SCS-F(SCS-F). You can perform the same operation using this product.


Dimension Drawing

SCB-RClamping Bolt - Full Ball寸法図

Specs/CAD

Select

M(coarse)
All
M4
M5
M6
M8
M10
M12
M16

Unit : mm

Part Number M(coarse) L D1 D L1 L2 B Mass
(g)
Allowable load(N) Price
(USD)
CAD Add to Cart
SCB-M4-10-R M4 10.5 7 2.5 4 2.1 3 1.5 3500 2.48 CAD Cart
SCB-M4-12-R M4 12.5 7 2.5 4 2.1 3 1.7 3500 2.48 CAD Cart
SCB-M4-16-R M4 16.5 7 2.5 4 2.1 3 1.9 3500 2.48 CAD Cart
SCB-M4-20-R M4 20.5 7 2.5 4 2.1 3 2.2 3500 2.48 CAD Cart
SCB-M4-25-R M4 25.5 7 2.5 4 2.1 3 2.5 3500 2.48 CAD Cart
SCB-M5-12-R M5 12.6 8.5 3 5 2.4 4 2.9 5000 2.32 CAD Cart
SCB-M5-16-R M5 16.6 8.5 3 5 2.4 4 3.4 5000 2.32 CAD Cart
SCB-M5-20-R M5 20.6 8.5 3 5 2.4 4 3.9 5000 2.32 CAD Cart
SCB-M5-25-R M5 25.6 8.5 3 5 2.4 4 4.4 5000 2.32 CAD Cart
SCB-M5-30-R M5 30.6 8.5 3 5 2.4 4 5 5000 2.32 CAD Cart
SCB-M6-16-R M6 16.8 10 4 6 3 5 5.6 9000 2.16 CAD Cart
SCB-M6-20-R M6 20.8 10 4 6 3 5 6.5 9000 2.16 CAD Cart
SCB-M6-25-R M6 25.8 10 4 6 3 5 7.6 9000 2.16 CAD Cart
SCB-M6-30-R M6 30.8 10 4 6 3 5 8.7 9000 2.16 CAD Cart
SCB-M6-40-R M6 40.8 10 4 6 3 5 11 9000 2.16 CAD Cart
SCB-M8-20-R M8 21.2 13 5.5 8 3.5 6 13.5 15000 2.63 CAD Cart
SCB-M8-30-R M8 31.2 13 5.5 8 3.5 6 17.5 15000 2.63 CAD Cart
SCB-M8-35-R M8 36.2 13 5.5 8 3.5 6 19 15000 2.63 CAD Cart
SCB-M8-40-R M8 41.2 13 5.5 8 3.5 6 21.5 15000 2.63 CAD Cart
SCB-M8-50-R M8 51.2 13 5.5 8 3.5 6 25 15000 2.77 CAD Cart
SCB-M10-25-R M10 26.7 16 7 10 4.5 8 26 24000 2.77 CAD Cart
SCB-M10-30-R M10 31.7 16 7 10 4.5 8 29 24000 2.77 CAD Cart
SCB-M10-40-R M10 41.7 16 7 10 4.5 8 34 24000 2.94 CAD Cart
SCB-M10-50-R M10 51.7 16 7 10 4.5 8 39 24000 3.08 CAD Cart
SCB-M10-60-R M10 61.7 16 7 10 4.5 8 47 24000 3.37 CAD Cart
SCB-M12-30-R M12 32 18 8.5 12 5 10 40 30000 3.99 CAD Cart
SCB-M12-50-R M12 52 18 8.5 12 5 10 56 30000 4.17 CAD Cart
SCB-M12-80-R M12 82 18 8.5 12 5 10 83 30000 4.17 CAD Cart
SCB-M16-40-R M16 43.3 24 12 16 6 14 91 73000 6.30 CAD Cart
SCB-M16-60-R M16 63.3 24 12 16 6 14 122 73000 6.75 CAD Cart
SCB-M16-80-R M16 83.3 24 12 16 6 14 154 73000 7.07 CAD Cart

No products fulfill the conditions above.

We regret to inform you that no products fulfill the conditions you have entered.
Please change the values you have entered and search once again.

Nabeya Bi-tech Kaisha offers customized products in accordance with your needs.
Please feel free to contact us via the inquiry form.

Nabeya Bi-tech Kaisha
Customer Service

Please enter questions about customization and other product-related inquiries here.

Find the inquiry form here

Material/Finish

SCB-R
Made of Steel
Thread
Part
SCM435
Ferrosoferric Oxide Film (Black)
Ball SUJ2 (hardness: 55-60 HRC)

Characteristics

  • Point contact by full ball securely fixes a work.
  • For tool holder set screw, pressure piece and stopper.
  • We also produce products of special specifications, e.g. nominal diameter of thread, length and surface treatment. Please feel free to contact our customer service.
