• Wireless Positioning Units

EPC-100

Transceivers for Wireless Positioning Unit - PC Control

Characteristics

  • A dedicated transceiver for Wireless Positioning Units EPU-100 (EPU-100) EPU-200 (EPU-200).
  • With a PC and USB connection enable wireless operation of Wireless Positioning Units.
  • Simultaneous automated operation of up to 32 Wireless Positioning Units is possible.
  • A USB cable for PC connection (length: 50cm) is provided.

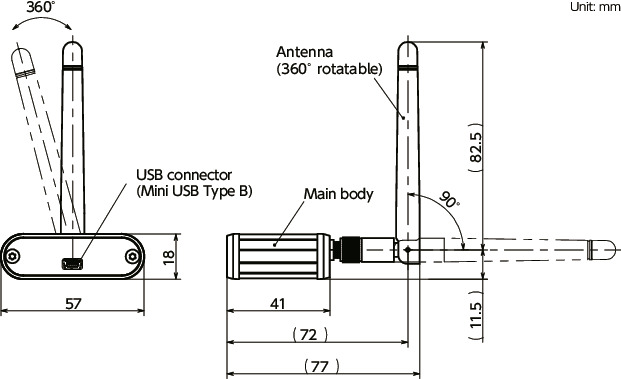

Dimension Drawing

EPC-100Transceivers for Wireless Positioning Unit - PC Control寸法図

Specs/CAD

Unit : mm

Part Number Mass
(g)
Price
(USD)
CAD Add to Cart
EPC-100 45 307.33 CAD Cart

Material/Finish

EPC-100
Main Body A6063
Anodized

Performance

Power Source Voltage 5V + 5% (USB power supply)
Wireless Communication 2.4GHz Band Wireless Communication
Wireless Reach Distance
(Reference Value)
Indoors 60m
Outdoors 1200m
Maximum No. of Connected Wireless Positioning Units 32 Units

Only takes two minutes to understand!Wireless Positioning Units Installation/Connection Method


Precautions for Use

Be sure to read the Instruction Manual before use to ensure safe and correct usage.

Related Products

Wireless Positioning Units can be used in combination with EPC-100.
Standard Type EPU-100
Dustproof/Waterproof/Thin Type EPU-200

EPC-100Transceivers for Wireless Positioning Unit - PC Control

Transceivers EPC-200-CC can be used to control Wireless Positioning Units EPU-100EPU-200 for connection with a PLC.
EPC-200-CC

EPC-100Transceivers for Wireless Positioning Unit - PC Control
