• Wireless Positioning Units

EPU-200

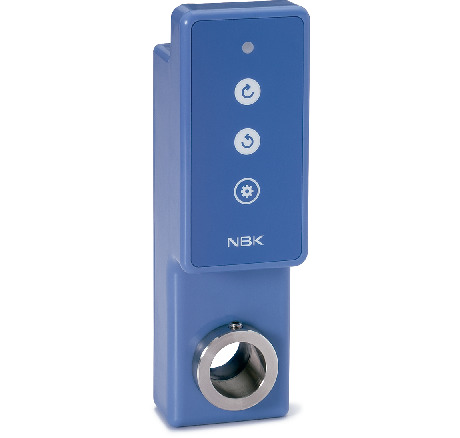

Wireless Positioning Units - Dustproof/Waterproof Thin Type

Click here for all downloads!

Catalog PDF・・・Drawings and dimensions are available. Click here for product details.
Manual・・・Be sure to read the Instruction Manual before use to ensure safe and correct usage.
Software・・・Download for free! Check the actual operation screen.
Product Configuration・・・Introducing the entire Wireless Automation Unit series.

The Wireless Positioning Unit's features are introduced in this video!


Characteristics

  • These units automate positioning mechanisms with a feed screw. By replacing the feed screw operating handle with EPU-200, device positioning mechanisms can be automated.
  • Through the use of the dedicated transceivers EPC-100 (EPC-100) or EPC-200-CC (EPC-200-CC), simultaneous automated operation of up to 32 Wireless Positioning Units is possible. Wireless connection to transceivers is possible.
  • For configuration and control of EPU-200, the dedicated software EPU-COM is required. The dedicated software is available free of charge. Please download from the NBK website.
    https://www.nbk1560.com/en-US/products/mechatronics/positioning_unit/EPU-200/
  • Controller and antenna are built in. Thin shape helps save space.
  • When using a handle and digital position indicator in combination, using the adapter plate EOAP-200(EOAP-200) eliminates the need for additional modification work. This saves space compared with the combination of a handle and a digital position indicator.

EPU-200Wireless Positioning Units - Dustproof/Waterproof Thin Type

  • IP65 dustproof and waterproof protection.
  • Uses NSF H1 accredited food machinery grease.

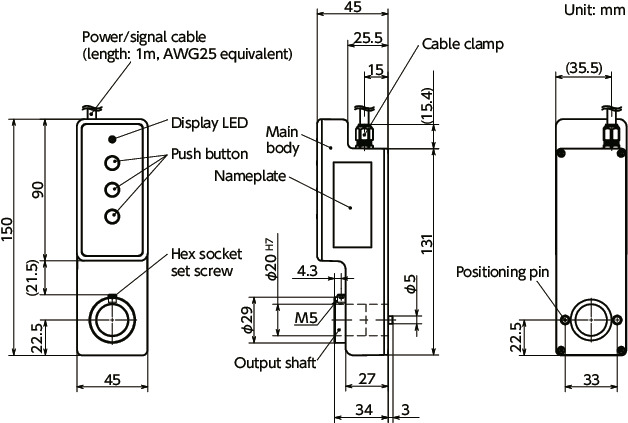

Dimension Drawing

EPU-200Wireless Positioning Units - Dustproof/Waterproof Thin Type寸法図

Specs/CAD

Part Number Mass
(g)
Price
(USD)
CAD Add to Cart
EPU-200-W5-R60 304 637.70 CAD Cart

Material/Finish

EPU-200
Main Body Nylon 6 (Blue)
Output Shaft SUS304
Cable Clamp Brass
Nickel Plating
Power/Signal Cable Oil Resistant PVC (Matte Black)

Only takes two minutes to understand!Wireless Positioning Units (EPU-200 EPC-200) Installation/Connection Method


Mounting

① Drill holes for the positioning pins on the mounting surface of the machine, then put the rotation axis through the mounting surface as per the figure.

EPU-200Wireless Positioning Units - Dustproof/Waterproof Thin Type

*1: Make one of the two positioning pin holes into a slotted hole as per the figure. If machining a slot is difficult, drill out a φ6 or larger round hole.

② Pass the rotation axis through the unit output shaft and insert the positioning pins into the holes drilled in ①, then secure with the hex socket set screws supplied. (Recommended tightening torque: 2.8 N・m)

EPU-200Wireless Positioning Units - Dustproof/Waterproof Thin Type


Performance

Power Source Voltage 24 VDC ± 10%
Current Consumption Waiting 40 mA
Rated 0.6 A
Max. 1 A
Rated Output 5 W
Rated Rotational Frequency 60 ±10 rpm
Rated Torque 0.8 N・m
Continually Usable Time 1 Minute or Less*1
Output Shaft
Max. Allowable Load
Radial Load 19.6 N*2
Thrust Load 19.6 N*2
Stop Accuracy ± 5°
Input Wireless Communication 2.4GHz Band Wireless Communication
Wired Communication RS-485 (2-wire type)
Wireless Reach Distance
(Reference Value)
Indoors 60 m
Outdoors 1200 m
IP Protection Class IP65
Operating Environment Temperature -5°C to 55°C (no freezing)
Humidity 20% RH to 85% RH (no condensation)

*1: Cooldown time for 10 minutes or so after continuous use.
*2: Output shaft max. allowable load

EPU-200Wireless Positioning Units - Dustproof/Waterproof Thin Type


Precautions for Use

Be sure to read the Instruction Manual before use to ensure safe and correct usage.
The Instruction Manual can be downloaded from the NBK website.

Related Products

Dedicated transceivers are available.
For PC control EPC-100
For PLC control EPC-200-CC

EPU-200Wireless Positioning Units - Dustproof/Waterproof Thin Type

This is a standard type Wireless Positioning Units EPU-100.
EPU-100

EPU-200Wireless Positioning Units - Dustproof/Waterproof Thin Type

If replacing a digital position indicator with EPU-200, a EOAP-200 dedicated adapter plate is available to make use of the existing machine mounting holes.
EOAP-200

EPU-200Wireless Positioning Units - Dustproof/Waterproof Thin Type

EOCL-200 dedicated collars enable the output shaft bore diameter to be changed to match the rotation shaft.
EOCL-200

EPU-200Wireless Positioning Units - Dustproof/Waterproof Thin Type
