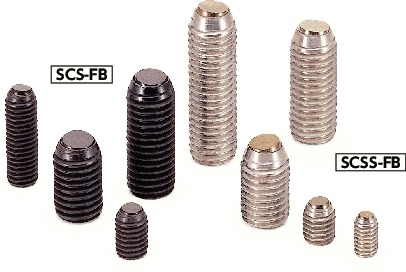

SCS-FB

Clamping Screw - Flat Ball - with Reversal Protection Mechanism

Hints for Correctly Using NBK Products

The video is an example using SCS-F(SCS-F). You can perform the same operation using this product.

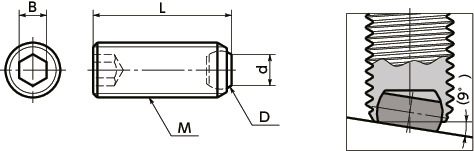

Dimension Drawing

SCS-FBClamping Screw - Flat Ball - with Reversal Protection Mechanism寸法図

Specs/CAD

Select

M (Coarse)
Nominal of Thread
All
M4
M5
M6
M8
M10
M12
M16

Unit : mm

Part Number M (Coarse)
Nominal of Thread
Pitch L D d B Mass
(g)
Price
(USD)
CAD Add to Cart
SCS-M4-6-FB M4 0.7 6 2.5 2 2 0.4 13.24 CAD Cart
SCS-M4-10-FB M4 0.7 10 2.5 2 2 0.7 13.24 CAD Cart
SCS-M4-16-FB M4 0.7 16 2.5 2 2 1 13.24 CAD Cart
SCS-M5-8-FB M5 0.8 8 3 2.5 2.5 0.8 11.66 CAD Cart
SCS-M5-12-FB M5 0.8 12 3 2.5 2.5 1.3 11.66 CAD Cart
SCS-M5-20-FB M5 0.8 20 3 2.5 2.5 2.3 11.66 CAD Cart
SCS-M6-10-FB M6 1 10 4 3.2 3 1.5 8.99 CAD Cart
SCS-M6-16-FB M6 1 16 4 3.2 3 2.5 8.99 CAD Cart
SCS-M6-20-FB M6 1 20 4 3.2 3 3.4 8.99 CAD Cart
SCS-M6-25-FB M6 1 25 4 3.2 3 4 8.99 CAD Cart
SCS-M8-10-FB M8 1.25 10 5.5 4.5 4 2.5 9.62 CAD Cart
SCS-M8-12-FB M8 1.25 12 5.5 4.5 4 3.2 9.62 CAD Cart
SCS-M8-20-FB M8 1.25 20 5.5 4.5 4 5.7 9.62 CAD Cart
SCS-M8-25-FB M8 1.25 25 5.5 4.5 4 7.7 9.62 CAD Cart
SCS-M8-30-FB M8 1.25 30 5.5 4.5 4 9 9.62 CAD Cart
SCS-M10-12-FB M10 1.5 12 7 6 5 5 11.82 CAD Cart
SCS-M10-16-FB M10 1.5 16 7 6 5 7 11.82 CAD Cart
SCS-M10-20-FB M10 1.5 20 7 6 5 9.5 11.82 CAD Cart
SCS-M10-25-FB M10 1.5 25 7 6 5 11 11.82 CAD Cart
SCS-M10-35-FB M10 1.5 35 7 6 5 16 11.82 CAD Cart
SCS-M12-16-FB M12 1.75 16 8.5 7.2 6 10 13.24 CAD Cart
SCS-M12-20-FB M12 1.75 20 8.5 7.2 6 12.5 13.24 CAD Cart
SCS-M12-30-FB M12 1.75 30 8.5 7.2 6 20 13.24 CAD Cart
SCS-M12-40-FB M12 1.75 40 8.5 7.2 6 28 13.24 CAD Cart
SCS-M16-20-FB M16 2 20 12 10.7 8 22 19.99 CAD Cart
SCS-M16-25-FB M16 2 25 12 10.7 8 28 19.99 CAD Cart
SCS-M16-35-FB M16 2 35 12 10.7 8 41 19.99 CAD Cart
SCS-M16-50-FB M16 2 50 12 10.7 8 48 19.99 CAD Cart

No products fulfill the conditions above.

We regret to inform you that no products fulfill the conditions you have entered.
Please change the values you have entered and search once again.

Nabeya Bi-tech Kaisha offers customized products in accordance with your needs.
Please feel free to contact us via the inquiry form.

Nabeya Bi-tech Kaisha
Customer Service

Please enter questions about customization and other product-related inquiries here.

Find the inquiry form here

Material/Finish

SCS-FB
Made of Steel
Thread
Part
SCM435
Ferrosoferric Oxide Film (Black)
Ball SUJ2 (hardness: 55-60 HRC)
Ferrosoferric Oxide Film (Black)

Characteristics

  • The ball rotates flexibly by up to 9°. The reversal protection mechanism always ensures secure clamping on the flat plane on the ball.
  • We also produce products of special specifications, e.g. nominal diameter of thread, length and surface treatment. Please feel free to contact our customer service.
