Hints for Correctly Using NBK Products
The video is an example using SCS-F(SCS-F). You can perform the same operation using this product.
Dimension Drawing
Unit : mm
| Part Number | M (Coarse) Nominal of Thread |
Pitch | L | D | d | B | Mass (g) |
Price (USD) |
CAD Download |
Add to Cart |
|---|---|---|---|---|---|---|---|---|---|---|
| SCS-M10-35-FB | M10 | 1.5 | 35 | 7 | 6 | 5 | 16 | 10.87 | CAD | Cart |
＊： SCS-M8-10-FBSCS-M10-12-FBSCS-M12-16-FBSCS-M16-20-FB has a shallow Hex Socket hole depth.
Nabeya Bi-tech Kaisha
Customer Service
Please enter questions about customization and other product-related inquiries here.
Find the inquiry form hereMaterial/Finish

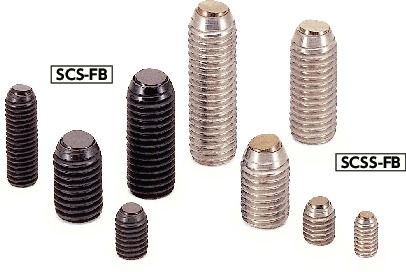

| SCS-FB Made of Steel |
|
|---|---|
| Thread Part |
SCM435 Ferrosoferric Oxide Film (Black) |
| Ball | SUJ2 (hardness: 55-60 HRC) Ferrosoferric Oxide Film (Black) |
Characteristics
- The ball rotates flexibly . The reversal protection mechanism always ensures secure clamping on the flat plane on the ball.
- We also produce products of special specifications, e.g. nominal diameter of thread, length and surface treatment. Please feel free to contact our customer service.
