UNF-110H-CR

Steel U - shaped Pull

Steel Pull

Safety Precautions

RoHS Compliant

UNF-HSteel U - shaped Pull

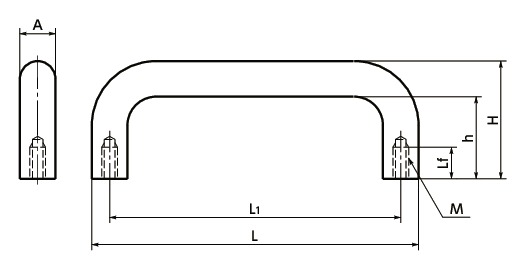

Dimension Drawing

UNF-HSteel U - shaped Pull寸法図

Unit : mm

Part Number M Lf H h A L L1 Mass
(g)		 Allowable load＊1
(N)		 Applicable Washer Body color Screw supply service Screw size Price
(USD)		 CAD
Download		 Add to Cart
UNF-110H-CR M5 10 45 35 10 120 110 105 1000 ※1 CR M5×12 5.03 CAD Cart

＊1：　Allowed load for a person.

No products fulfill the conditions above.

We regret to inform you that no products fulfill the conditions you have entered.
Please change the values you have entered and search once again.

Nabeya Bi-tech Kaisha offers customized products in accordance with your needs.
Please feel free to contact us via the inquiry form.

Nabeya Bi-tech Kaisha
Customer Service

Please enter questions about customization and other product-related inquiries here.

Find the inquiry form here
Part Number
Amount
Price（＄）

Check other products Cart

　　　　　　

Material/Finish

UNF-H-CR
Main body SS330
Chrome Plating
Hex Socket Head Cap Screws
(Screw supply service)		 SUSXM7

取りつけ寸法 1mm 指定・取りつけ用ねじ付属サービス

ご希望の取りつけ寸法：L₁を 1mm 単位で指定できます。（取りつけ寸法を入力後「品番更新」をクリックしてください。）

また、オプション（別料金）で取りつけ用のねじを付属します。

取りつけ寸法L₁（mm）* 取りつけ用ねじ ご注文品番 価格(円) 購入数 ご購入
個 カート

＊取りつけ寸法 L₁ の許容差は、±0.5mmまたは、L₁ の0.5%のいずれか大きい方となります。

1mm指定の納期
数量（個） 1mm指定の納期
1～9 実働１日目出荷
10～99 実働3日目出荷
取りつけ用ねじの仕様・価格
ねじのサイズ ねじ本数（本） ねじの材質 ねじ付属サービス価格（円）

取りつけ用ねじ付属サービス

オプション（別料金）で取りつけ用のねじを付属します。

取りつけ用ねじの有無を選択いただき、「カート」をクリックしてください。

取りつけ用ねじ ご注文品番 価格(円) 購入数 ご購入
個 カート
取りつけ用ねじの仕様・価格
ねじのサイズ ねじ本数（本） ねじの材質 ねじ付属サービス価格（円）

Characteristics

  • Hex socket head cap screws for mounting (SUSXM7) are available as an option. Use the screw supply service (charged separately).
