This page helps you select a product based on the application needs of your project.
Call or email us for any special needs not shown here.
Problems solved with special screws!

• Vacuum  Updated
• Low Outgas
• Cleanroom Specification
• Chemical Resistance
• Antireflection
• Heat Resistance
• Seizing Prevention
• High Strength
• Tightening Hole Damage Prevention
• Non-Magnetic
• Electrical Insulation
• Lightweight
• Simple Operation
• Space-saving  Updated
• Theft Prevention  Updated
• Fixing and Positioning
• Fallout/Loss Prevention
• Vibration Resistant
• Female Thread Reinforcing  NEW
• Prevention of air/liquid leakage
• Decoration  Updated

Note: Values in charts are for reference only. They are not guaranteed values.

Vacuum   Updated

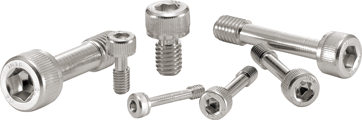

• Bolts with ventilation holes and washers with ventilation grooves support equipment vacuuming.

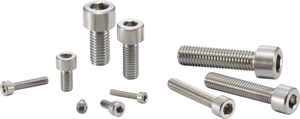

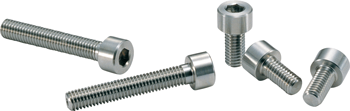

• Hex socket head cap screw incorporating a ventilation hole that has been treated to prevent screw galling and seizing.

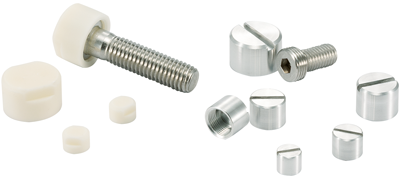

• Aluminum alloy and ceramic cover caps prevent corrosion of bolts due to the process gas and plasma in the vacuum chamber.

Click here to see all Vacuum products

Low Outgas

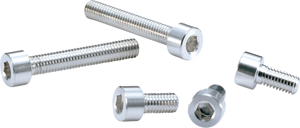

• Screws using material/surface treatment with low outgassing. Outgassing is extremely low even in vacuum environments.

Cleanroom Specification

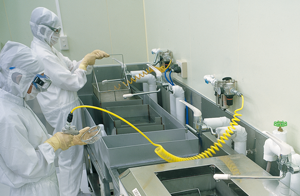

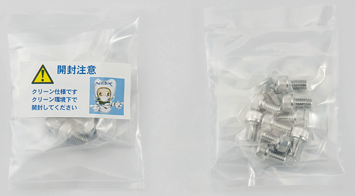

• Screws are washed and packed in cleanrooms.

For details, refer to Cleanroom Wash & Packaging Service. ➡ Cleanroom Wash / Cleanroom Packing Service

Click here to see all Cleanroom Specification products

Chemical Resistance

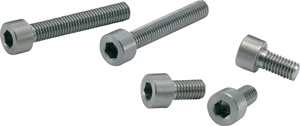

• Screws with excellent chemical resistance protect the thread and screw head from chemicals.

Hastelloy

Metal's chemical resistance

Material	Chemical Resistance	product
Hastelloy equivalent		Hastelloy products
Monel 400 equivalent		Monel 400 products
Titanium		Titanium products
Inconel 600 equivalent		Inconel products
Duplex stainless steel		SNHDS, SHNDS, SWAI-F
SUS316L HiMo		SNSX-88, SNSX-109
SUS310S		SNSJ, SHNJ, SWAJ-F

PTFE（Polytetrafluoroethylene）

Resin's chemical resistance

Material	Chemical Resistance	product
PTFE（Polytetrafluoroethylene）		PTFE(Polytetrafluoroethylene) products
PVDF		PVDF products
PP		PP products
PEEK		PEEK products

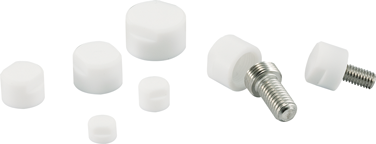

• PTFE (Polytetrafluoroethylene) cover cap protects the screw head from chemicals.

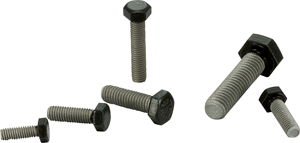

• Bolt head only has PTFE Coating with excellent chemical resistance.

Antireflection

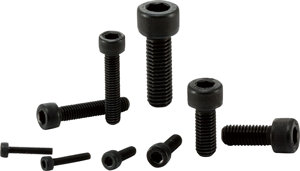

• Low temperature black chrome treatment/stainless steel black has a very low spectral reflectance, making it ideal for optical equipment that requires antireflection.

Heat Resistance

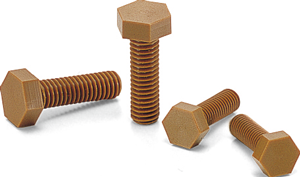

• These are highly heat‑resistant screws even for metal/resin.
  Select according to the operating environment.

Molybdenum

Seizing Prevention

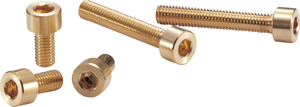

• By reducing the friction coefficient of the threaded surface through plating and coating, the required axial force can be obtained even at low tightening torque. As a result, the generation of frictional heat in tightening can be suppressed, making it effective in preventing galling and seizing.
  ＞＞Galling and Seizing

• Galling and seizing are prevented by curing the screw surface using NBK's own processing technology. There is nothing adhering to the surface, eliminating concerns about contamination due to stripping. Furthermore, it is effective in preventing galling and seizing even at high temperatures.

High Strength

• Screws made of high‑strength titanium, stainless steel, resin and surface treatment.
  For applications that require strength in addition to the properties of the material and surface treatment.

Ti-6Al-4V（64Titanium）

Tightening Hole Damage Prevention

• Hexalobular hole shape allows minimal damage from tools compared to hex hole or cross hole.
  It is ideal for repeated use at a high tightening torque.

Non-magnetic

• Non-magnetic screws with low permeability.
  For FPD manufacturing equipment, semiconductor manufacturing equipment and electronic equipment requiring non-magnetic properties.

Electrical Insulation

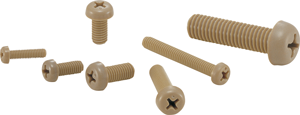

• Screws with excellent electrical insulation properties.
  For electrical and electronic equipment and the like requiring electrical insulating properties.

Lightweight

• For applications that require lighter weight such as automobiles, aircraft, aerospace equipment, medical equipment, robots, etc.

Work Process Reduction

• Screws with washers incorporated. They do not require washers to be embedded, simplifying the assembly.

• Tools that can be used even in limited access spaces.

Space-saving  Updated

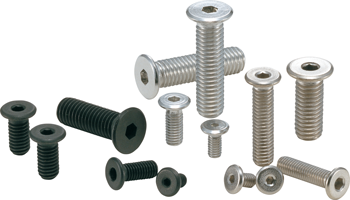

• Screws with low head. Suitable for reducing the size of equipment and devices.

Theft Prevention  Updated

• This prevents mounting and removing with commercial screwdrivers or wrenches. Dedicated tools are required for these screws, providing effective theft prevention.

• Theft prevention nuts and one-sided pan-head screws can be mounted using commercially available tools. Crime can be prevented without compromising the workability of mounting.

Click here to see all Theft Prevention products

Fixing and Positioning

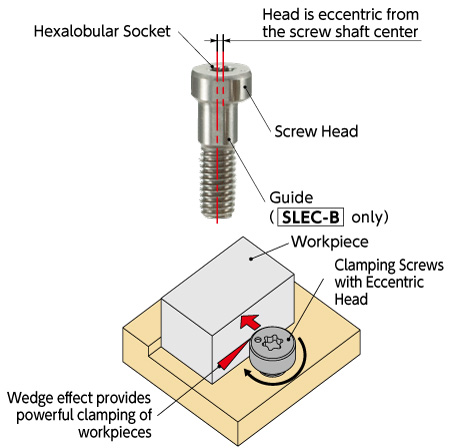

• Clamping screws with eccentric head are suitable for fixing and positioning. When the screw is tightened, the workpiece is strongly clamped by the head, which is decentered from the shaft center of the screw. The wedge effect creates a large clamping force with low tightening torque.

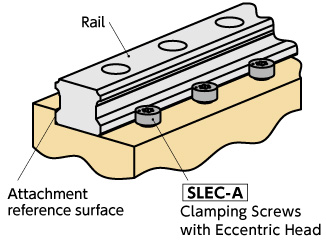

• Suitable for mounting linear guideway rails. As the decentered head presses the rail against the installation reference surface, precision can be easily achieved when mounting. Also, mounting accuracy is maintained by suppressing warping and misalignment caused by long-term use.

Fallout/Loss Prevention

• Screws and washers suitable for screw fallout prevention. For CE Marking compatibility.

• Captive processing service is available to provide screws with relief cut and fallout prevention functions.

• Since a flat washer is incorporated into the screw, the washer will not be lost.

• M1.4 to M2.6 captive screws for precision instruments.

Pan Head Machine Screws for Precision Instruments
(Miniature Screws)

Vibration Resistant

• Screw components highly effective for prevention of screw loosening due to vibration or seating surface falling.

In addition to the above products, an anti-loosening service for screws is available. ➡ Vibration Resistant Treatment Service

• Prevents screw loosening with eccentric lock washers in combination with commercially available hex nuts.

Click here to see all Vibration Resistant products

Female Thread Reinforcing  NEW

• A keyed female-thread reinforcing insert. It is ideal for reinforcing female threads in light metals such as aluminum, castings, or resin, as well as for repairing damaged female threading.
• With high strength compared to coil-type inserts, it is usable for firm fastening or in areas where bolts are frequently fastened and removed.

Mounting is even easier than with coil-type inserts.
Use the dedicated tool SKK.

Prevention of air/liquid leakage

• Plugs and seal washers prevent leakage of gas or liquid.

• A service is available to improve seal performance by applying fluororesin synthetic composite to the threads.

Decoration  Updated

• The mounting surface has been beautifully decorated with a distinctive color and shape.

Consult us if you have any questions.

Note: 60% of special screw purchase orders to NBK are for special screws not listed in this catalog. Many unique customization requests may be possible.
