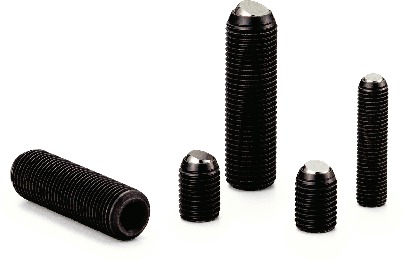

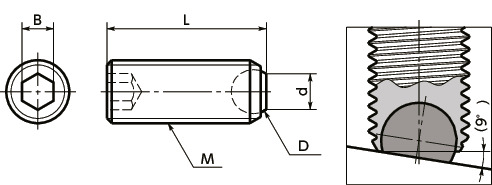

Dimension Drawing
Specs/CAD
Unit : mm
| Part Number | M (Fine) Nominal of Thread |
Pitch | L | D | d | B | Mass (g) |
Allowable load(N) | Price (USD) |
CAD Download |
Add to Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| SCS-M6F-10-F | M6 | 0.75 | 10 | 4 | 3.2 | 3 | 1.5 | 9000 | 6.35 | CAD | Cart |
| SCS-M6F-16-F | M6 | 0.75 | 16 | 4 | 3.2 | 3 | 2.5 | 9000 | 6.69 | CAD | Cart |
| SCS-M6F-20-F | M6 | 0.75 | 20 | 4 | 3.2 | 3 | 3.4 | 9000 | 7.19 | CAD | Cart |
| SCS-M6F-25-F | M6 | 0.75 | 25 | 4 | 3.2 | 3 | 4 | 9000 | 7.34 | CAD | Cart |
| SCS-M8F-12-F | M8 | 1 | 12 | 5.5 | 4.5 | 4 | 3.2 | 15000 | 7.19 | CAD | Cart |
| SCS-M8F-20-F | M8 | 1 | 20 | 5.5 | 4.5 | 4 | 5.7 | 15000 | 7.50 | CAD | Cart |
| SCS-M8F-25-F | M8 | 1 | 25 | 5.5 | 4.5 | 4 | 7.7 | 15000 | 7.82 | CAD | Cart |
| SCS-M8F-30-F | M8 | 1 | 30 | 5.5 | 4.5 | 4 | 9 | 15000 | 8.38 | CAD | Cart |
| SCS-M10F-16-F | M10 | 1 | 16 | 7 | 6 | 5 | 7 | 24000 | 10.02 | CAD | Cart |
| SCS-M10F-20-F | M10 | 1 | 20 | 7 | 6 | 5 | 9.5 | 24000 | 10.03 | CAD | Cart |
| SCS-M10F-25-F | M10 | 1 | 25 | 7 | 6 | 5 | 11 | 24000 | 10.58 | CAD | Cart |
| SCS-M10F-35-F | M10 | 1 | 35 | 7 | 6 | 5 | 16 | 24000 | 11.10 | CAD | Cart |
| SCS-M12F-20-F | M12 | 1.5 | 20 | 8.5 | 7.2 | 6 | 12.5 | 30000 | 13.00 | CAD | Cart |
| SCS-M12F-30-F | M12 | 1.5 | 30 | 8.5 | 7.2 | 6 | 20 | 30000 | 14.00 | CAD | Cart |
| SCS-M12F-40-F | M12 | 1.5 | 40 | 8.5 | 7.2 | 6 | 28 | 30000 | 15.47 | CAD | Cart |
Material/Finish
| SCS-F-F | |
|---|---|
| Thread Part | SCM435 Ferrosoferric Oxide Film (Black) |
| Ball | SUJ2 (hardness: 55-60 HRC) |
Characteristics
- Clamping screw of the fine screw threaded type for easy fine adjustment of threading amount.
- Surface contact by a flat ball. This does not scratch the work.
- The ball rotates flexibly . It securely clamps even when the mating part is tilted.
- For tool holder set screw, pressure piece and stopper.
- We also produce products of special specifications, e.g. nominal diameter of thread, length and surface treatment. Please feel free to contact our customer service.
Usage Example
For fixing of rotating body hub and shaft.
