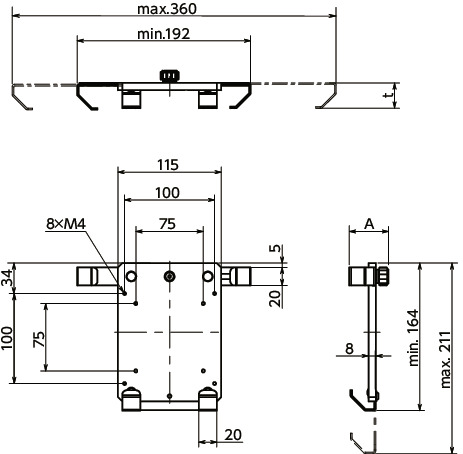

Dimension Drawing
Specs/CAD
Unit : mm
| Part Number←1 | Supports Tablet PCs | A | t | Max. Load Weight (kg) | Mass (g) | Price (USD) |
CAD Download |
Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Thickness min./max. | Width min./max. | Height min. | ||||||||
| DTA-13-330-BK | 6/13 | 190/330 | 155 | 44 | 28 | 5 | 505 | 117.85 | CAD | Cart |
| DTA-20-330-BK | 13/20 | 190/330 | 155 | 51 | 35 | 5 | 513 | 117.85 | CAD | Cart |
Structure
Material/Finish
| DTA | |
|---|---|
| Base | Aluminum Alloy Electrostatic Coating |
| Side Arm Bottom Arm |
SPHC Electrostatic Coating Nylon Coating (Tip Only) |
| Knob | Nylon 6 |
| Knob Thread Part | S45C Trivalent Chromate Treatment |
| Bottom Arm Fixing Bolt | SCM435 Ferrosoferric Oxide Film |
| Cushioning Seal | Polyurethane |
Characteristics

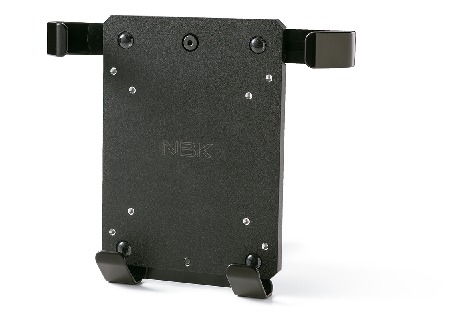

- A holder for mounting equipment and devices to tablet PCs.
- Robust design. It has excellent durability.
- Tablet PCs between 9 and 12 inches*1 can be mounted by adjusting the side arm and bottom arm.
- Arm interference with the various tablet PC ports can be avoided by adjusting the side arm and bottom arm position.
-
Select the model number depending on the thickness of the tablet PC to be mounted.
Tablet PC Thickness
6 - 13 mm ---- DTA-13-330-BK
13 - 20 mm ---- DTA-20-330-BK - The nylon coating on the arm tip and the cushioning seal on the base prevent the tablet PC from being scratched.
- When mounting DTA to equipment and devices, display mounting systems should be used*2. Also, there are M4 screw holes at 75 mm x 75 mm and 100 mm x 100 mm positions to allow mounting with commercially available display mounting systems compliant with VESA standards.
＊1： 9-inch and 10-inch tablet PCs can only be installed horizontally.
＊2： Screws for mounting to display mounting systems are not supplied.
Combining with the display mounting systems below allows the tablet PC angle to be adjusted.
| Display Mounting System Model Number | Angle Adjustment Direction |
|---|---|
| DFS DFSN DFS-AF DFS-AA DFS-PB DFSN-AF DFSN-AA DFSN-PB | Vertical or Horizontal |
|
DFT
DFT-AF
DFT-AA
DFT-PB
DFK DFK-AF DFK-AA DFK-PB |
Any Direction across 360° and Tablet PC Rotation |
| DFR DFR DFR-AF DFR-AA DFR-PB | Fixed |
Use M4 x 8 screws for mounting. Mounting screws are not supplied.
Refer to each product page for details of display mounting system specifications.
Application
Machine tool / Medical equipment / FPD production device / Semiconductor manufacturing device / Packing machine / Food machineryTablet PC Mounting Method
Height Adjustment Method
＊1： The tablet PC may fall out of the holder if not tightened sufficiently.
